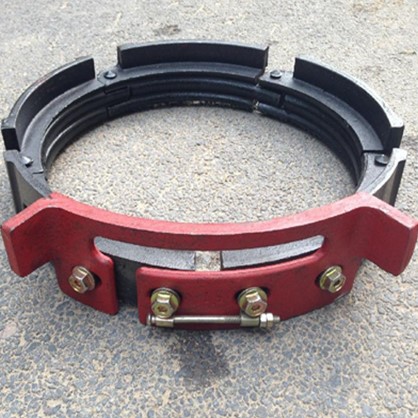

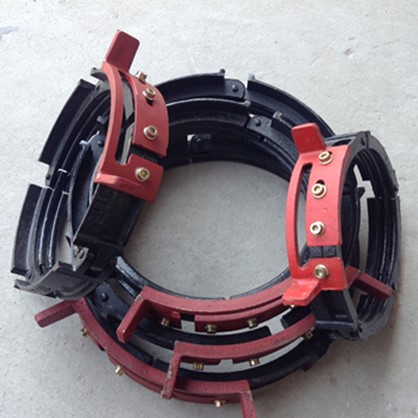

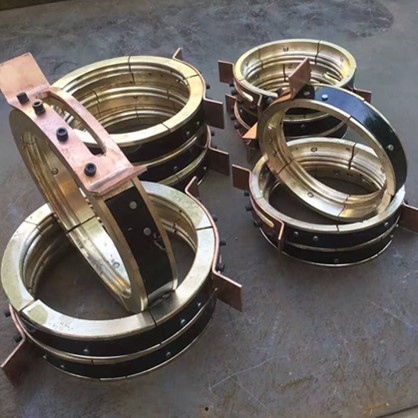

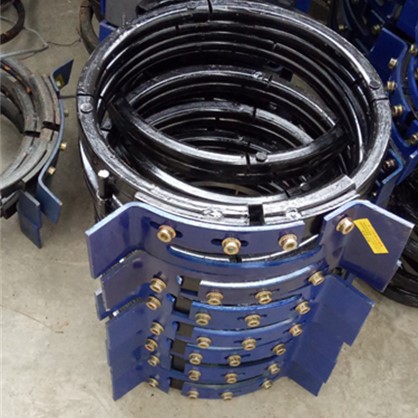

1.Composition: consists of a guide rope nut, a guide rope plate, and a connecting steel belt.
2.Function: The guide rope nut is cut into 5 pieces, which are connected by the connecting steel belt and the guide rope plate. The wire rope protrudes from the long groove of the guide rope plate. The guide rope nut meshes with the drum rope groove, and the drum rotates to drive the guide rope nut to move laterally, so as to ensure that the steel rope is not disorderly buckled in the drum rope groove. The rope guide plate moves laterally to both ends of the reel. When the limit position is reached, the limit rods mounted on the reel housing are moved together to reach the limit position and the limit switch installed on the main motor is activated to limit the position.
Features :novel design, simple structure, convenient installation, quick maintenance, long life cycle, low failure rate, and practicality. With the development of technology, the structure of the rope guide has also been correspondingly improved, and assembly, maintenance and replacement are more convenient. Some parts began to be made of high-strength plastics with toughness and elasticity, instead of using cast iron materials in the past, and also with friction-reducing additives, rolling friction between the pressure roller and the steel wire rope greatly reduced the wear of the steel wire.
1. Please provide us material, capacity and quantity for accurate poffer
2. Payment Terms :T/T L/C WU MG. ....
3. Delivery Time : Normally within 2 days after receiving your payment we have inventory
4. Package : Wooden box or nude package
