QD double girder overhead crane

Product Details
Buyer question and answer

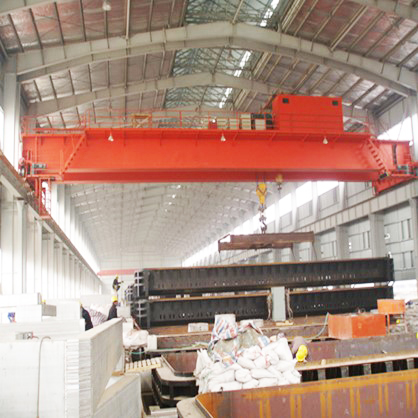

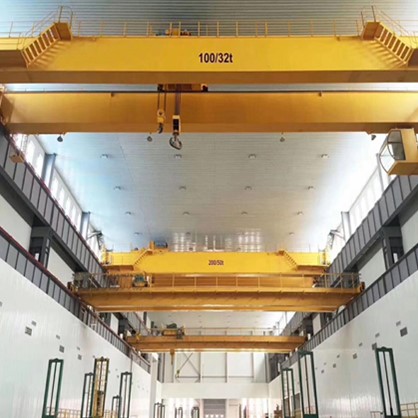

QD double girder overhead crane is mainly used in the workshop accoring to the utilization class and load condition ,working duty can be divided A5 and A6 .

The entrance of cabin has three ways from side entrance ,end entrance and top entrance and the cabin can be fixed on the left or right side.

The crane power supply can adpot safety bus bar or angle steel that can be fixed on the same or opposite side with the cabin .All of the work operation can be finished in the cabin ,if required,can add remote controller.

Safe slide wire or angle iron can be used for electric conduction of the crane ,it can be either at the opposite side of the cab or at the same side of the cab

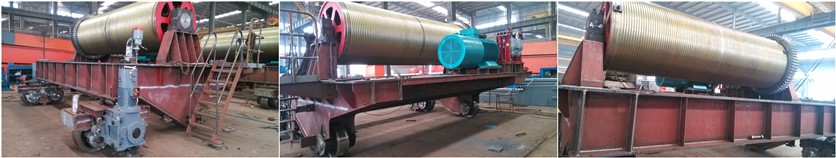

QD trolley :

1. Please send the following requirements :
1). Lifting capacity 2). Lifting height 3). Power supply 4). Span 5).Working Environment

2. Warranty : One Year

3. Installation : Engineer available to service machine overseas

4.Payment Terms : T/T ,LC ,WU,Cash ---30% as deposit ,70% before delivery .

5.Delivery Time : Within 7---10 days after your payment

6. Accept OEM ,ODM

7. Other service

1.Design the most suitable scheme for you according to your requirements

2.Send you detailed drawing after your deposit

3.Inform you the progress of your order in time

4.Test before shipping .And will send you test photo and video

5.Arrange transportation to your country,if you need

6.Provide product manual

7.Will arrange engineer to guide installation ,if need .If not need ,engineer is online 24 hours every day

8.Any question ,after-service team is here for you 24 hours every day
