Impact resistant all steel construction for RFI protection.
high precision crane scale load cell.
Graduation display selectable.
LCD display with LED background lighting.
Radio data transmission >100m (when unobstructed).
Data signal strength & Power level monitor.
Custom built option for operating under normal (-15° ~+55°c) or thermal (~80°C) environment.
Power supply: Nd-H rechargeable battery for Indicator and high capacity rechargeable battery (6V/10Ah) for scale.
Memory store up to 2900 weight data set.

Max capacity : 50t


When the hanger hook is hung on the hook, the sensor in the scale body is deformed by pulling force, the current in the sensor changes, and then the changed current passes through. A/D conversion, and then send the radio signal through the transmitter, according to the provisions of the National Radio Management Committee, electronic crane scale is generally issued with 230MHZ and 450MHZ, the receiver receives the signal and then transmitted to the instrument, and then through the conversion of the meter Finally show up. You can also connect to a computer for report operations like a scale.

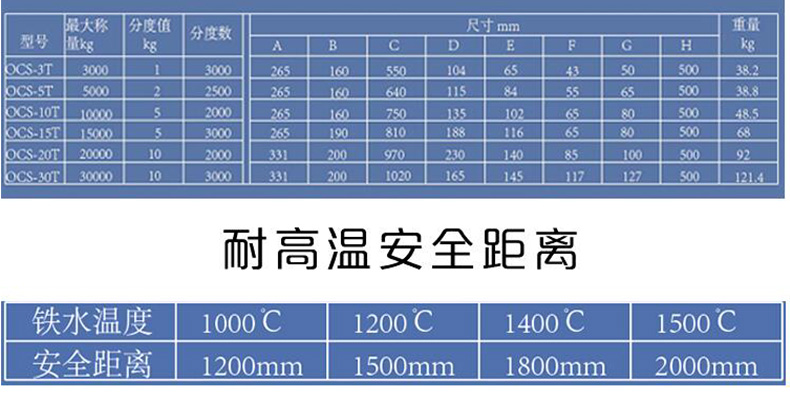

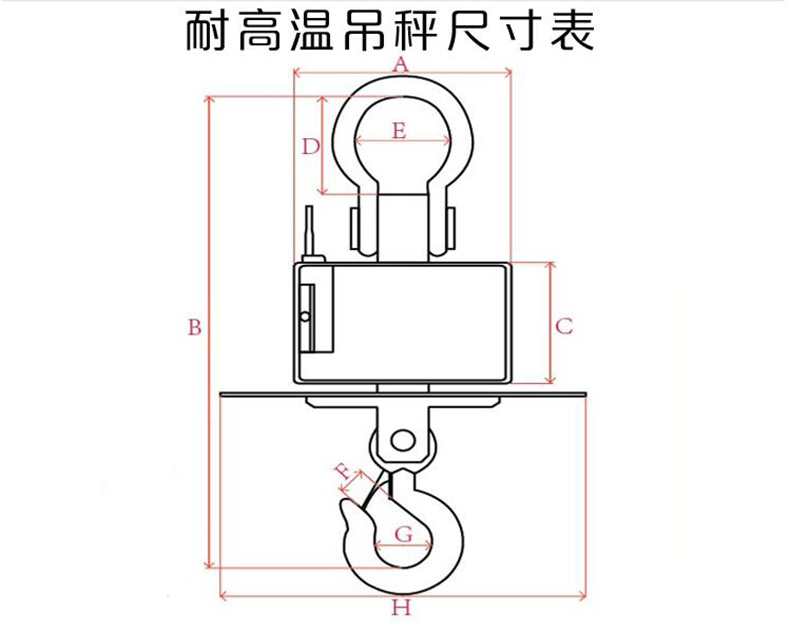

Heat resisting crane scale
